SHA-3: Secure Hash Crypto Engine
关于此报价

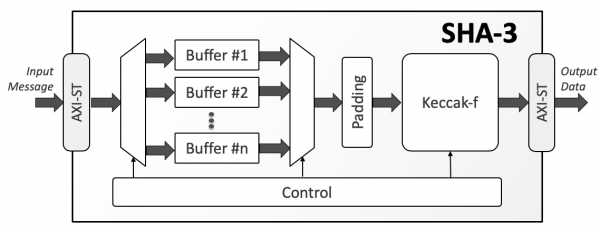

The SHA-3 IP core is a high-throughput, area-efficient hardware implementation of the SHA-3/Kaccak cryptographic hashing functions, compliant to NISTS’s FIPS 180-4 and FIPS 202 standards. The core can implement all four fixed-length hash functions (i.e. the SHA3-224, SHA3-256, SHA3-384, and SHA3-512) and both extendable output functions (i.e. SHAKE-128 and SHAKE-256) provisioned by the standards. The function can be dynamically selected at run-time. It’s throughput can optionally be optimized by using input message buffering, which allows it to receive new input while still processing the previous message. Also, the number of hashing rounds per clock is configurable at synthesis time, allowing users to constrain performance to save silicon resources when desired. The SHA-3 IP core can ensure data integrity and/or user authentication in a range of applications including IPsec and TLS/SSL protocol engines, encrypted data storage, secure processing systems, e-commerce, and financial transaction systems.
技术规格
- 类别:
- 软件和 IP 核: FPGA 知识产权内核: DSP: 转变
- 最终客户类型:
-
中小企业
企业
其它
采用的英特尔技术
英特尔® Agilex™ 7 FPGA 和 SoC FPGA
英特尔® Stratix® 10 FPGA 和 SoC FPGA
Stratix® V FPGA
Arria® V FPGA 和 SoC FPGA
Stratix® IV FPGA
Cyclone® V FPGA 和 SoC FPGA
英特尔® Arria® 10 FPGA 和 SoC FPGA
英特尔® Cyclone® 10 FPGA
Cyclone® IV FPGA
英特尔® Agilex™ 9 FPGA 和 SoC FPGA
