CSENT: SENT/SAE J2716 Controller
关于此报价

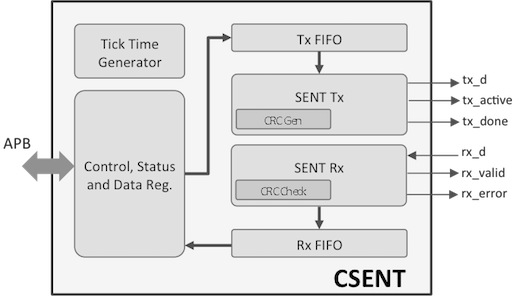

The CSENT core implements a controller for the Single Edge Nibble Transmission (SENT) protocol. It complies with the SAE J2716 standard and also the industry de-facto standard Short PWM Code (SPC) protocol, and can be used for conveying data from one or multiple sensors to a centralized controller using a single SENT line. The CSENT core can be configured as a Transmitter and/or as a Receiver, and therefore it is suitable for adding a SENT interface to devices transmitting sensor data or to controllers receiving sensor data. It provides access to its control, status, and data registers via a 32-bit APB bus interface, and a comprehensive set of interrupt signals facilitates interrupt-based operation. The core allows for Transmitter operation without requiring any external programming or control. The reset values for all its control registers are defined at synthesis time, and at run time the system only needs to write sensor data to the core.
技术规格
- 类别:
- 软件和 IP 核: FPGA 知识产权内核: 接口协议: 串行
- 最终客户类型:
-
中小企业
其它
企业
采用的英特尔技术
Cyclone® V FPGA 和 SoC FPGA
英特尔® Cyclone® 10 FPGA
Stratix® V FPGA
英特尔® Stratix® 10 FPGA 和 SoC FPGA
英特尔® MAX® 10 FPGA
Arria® V FPGA 和 SoC FPGA
英特尔® Arria® 10 FPGA 和 SoC FPGA
Cyclone® IV FPGA
英特尔® Agilex™ 7 FPGA 和 SoC FPGA
Stratix® IV FPGA
