xSPI-MC: xSPI, HyperBus™, and Xccela™ Serial Memory Controller
关于此报价

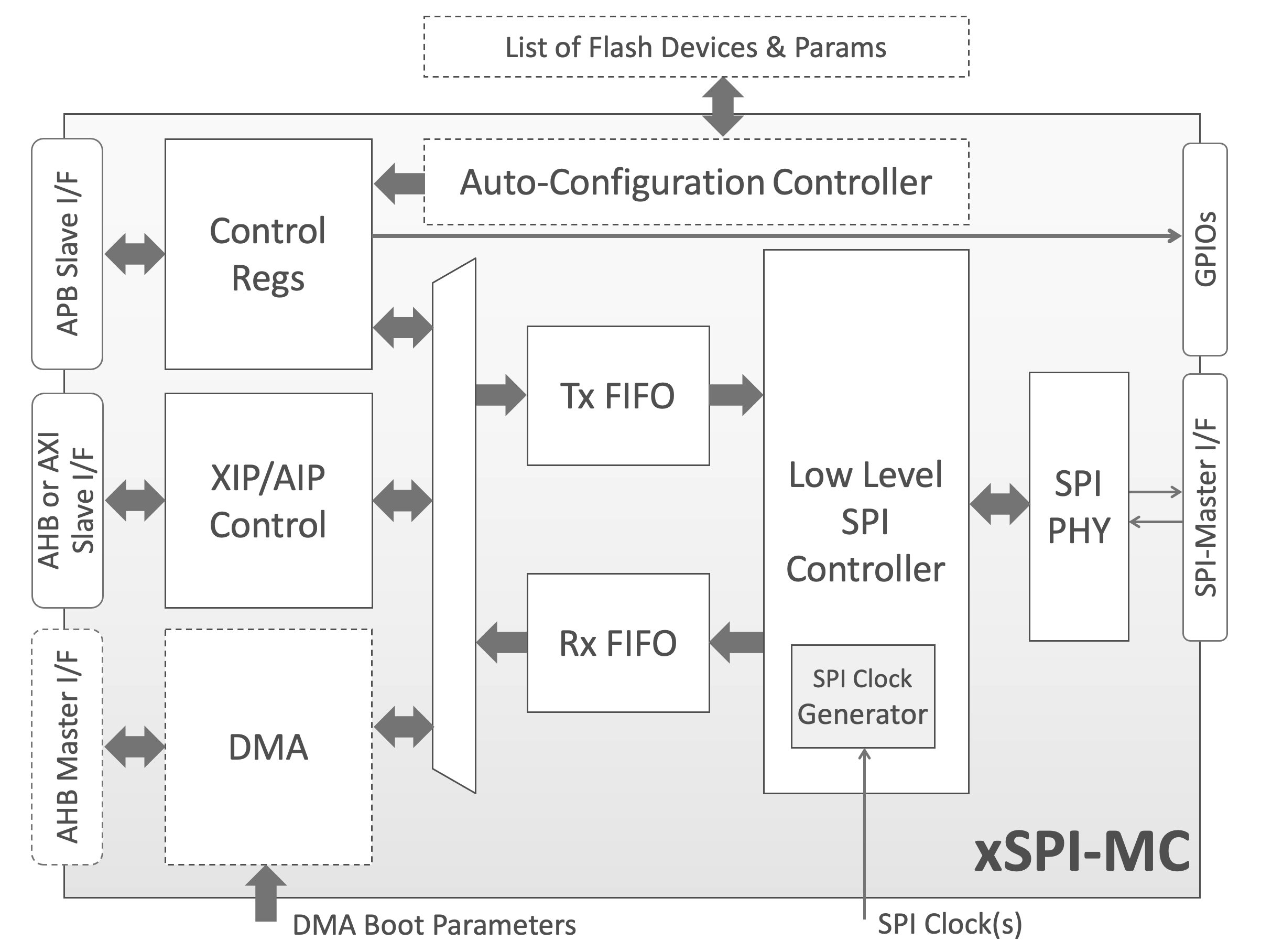

The xSPI-MC core is a versatile serial/SPI memory controller, which allows a system to easily detect and access the attached memory device or directly boot from it. The controller core supports most of the proprietary SPI protocols used by Flash and PSRAM devices vendors and is compatible to JEDEC’s eXpanded SPI (xSPI), HyperBus™ and Xccela™ standards. The core allows the system to interface with one or more serial memory devices in one of the following modes: a) in Slave mode by accessing its registers via an AHB slave interface, b) in DMA mode where the system programs the internal DMA engine, and then the core accordingly drives its AHB master interface, c) in Access In-Place (AIP) mode where the core allows the system to directly access the SPI memory address space via an AHB or AXI slave interface, d) in Boot-Image copy mode where after reset the core will autonomously copy an amount of data (boot-image) from the SPI memory to the AHB address space (e.g. on a shadow RAM, or DRAM) using its AHB master interface. The core can work with single, dual, quad, twin-quad, octal, or 16x SPI memory devices. To enable use with memory devices from different vendors, the core offers two ways of configuring the device-specific parameters: a) via registers, where the system is responsible to identify the connected flash device and program the appropriate values to the core's registers and b) by using the auto-configuration feature, where the core will autonomously identify the connected memory device and program itself accordingly. The auto-configuration functionality uses a user-provided memory that stores a list of automatically identifiable devices along with their features. The xSPI-MC can be easily configured to match different application requirements. The instantiation of the DMA engine and the auto-configuration logic, the maximum number of memory devices that the core supports, and the reset values for all configuration registers, are some of the design parameters that can be controlled by means of simple Verilog defines.
技术规格
- 类别:
- 软件和 IP 核: FPGA 知识产权内核: 内存接口和控制器: Flash
- 最终客户类型:
-
中小企业
企业
其它
采用的英特尔技术
英特尔® MAX® 10 FPGA
英特尔® Arria® 10 FPGA 和 SoC FPGA
英特尔® Agilex™ 7 FPGA 和 SoC FPGA
Stratix® V FPGA
英特尔® Stratix® 10 FPGA 和 SoC FPGA
Cyclone® V FPGA 和 SoC FPGA
Arria® V FPGA 和 SoC FPGA
英特尔® Cyclone® 10 FPGA
CAST
由于技术问题，我们无法提交表格。请过几分钟再重试。对由此给您带来的不便，我们深表歉意。
CAST
recaptcha 已识别出当前的交互类似于机器人，请重新加载页面或稍后重试。
Founded in 1993, CAST continues to thrive as the longest-running — and most experienced — independent IP supplier. Our mission has been to provide proven, low-risk IP cores, under simple and flexible licensing terms, coupled with outstanding support. The years of work we have done to perfect IP reuse, improve IP quality standards, and refine sales and business practices yield a product line and a partner network that offer you a better IP experience, today and in the future. Proven, Low-Risk IP: Our goal is to maximize IP benefits for our customers by delivering high-quality, easy-to-use, cost-effective solutions to real system development challenges. CAST quality standards are high, and all our IP undergoes rigorous verification and testing before it gets to you. We use industry-standard verification methodologies, develop and test prototypes, participate in industry collaboration plugfests, and more to ensure proper functioning and smooth integration. Our practices have been extensively tested and proven, as we have helped thousands of customers ship billions of units in hundreds of application areas. Simple, Flexible Licensing: We help you get to work quickly, with fine-tuned project options and licensing terms that ensure smooth legal sign-off. Most CAST IP is available royalty-free, and is extremely cost-effective. Outstanding Support: CAST IP comes with some of the best customer support in the industry. Our goal is to help make you successful, not just sell you IP, and we have the experience and resources to make that happen.
Xspi-mc: Xspi, Hyperbus™, And Xccela™ Serial Memory Controller
