SPMI-CTRL: MIPI SPMI Master or Slave Controller
关于此报价

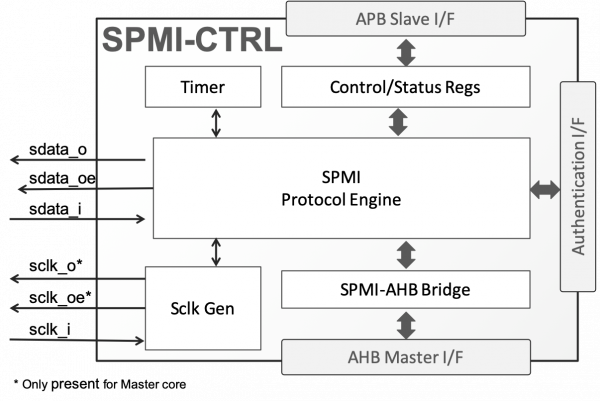

The SPMI-CTRL core implements a highly featured, easy-to-use controller for the MIPI System Power Management Interface (MIPI-SPMI) bus. It supports the latest version (v2.0) of the MIPI-SPMI specification, and is suitable for the implementation of either master or slave nodes in an SPMI bus. The core is designed to minimize the software load on the host processor. Once configured, the core requires no assistance from the host to initialize the bus, connect to bus or disconnect from the bus, grant access of the bus, execute incoming SPMI commands, generate ACK/NACK responses, and check the address and data parity. Although the core only expects the host to provide the outgoing SPMI commands, it provides thorough status information to the host, which can be used for a higher application layer or for debugging purposes. Last received command, outgoing command status, bus status, and node operation status are made available to the host via the core’s registers. Parity errors, unknown commands, or failure of receiving node to provide ACK/NACK response are also reported. Furthermore, the core can be programmed to operate in debug mode, under which the core captures and reports all SPMI bus commands regardless of the destination address. Integration of the core is extremely simple: The core provides access to its registers via a AMBA™ 2 APB slave interface, and converts the incoming SPMI read/write commands to accesses on its AHB master port. This SPMI-AHB bridging allows easy mapping of the SPMI address space to shared memories or peripheral registers. A dedicated interface allows integration with application-specific authentication logic, which can be reduced to just hardwiring the authentication response data. The core uses separate clocks for its APB and AHB bus interfaces, and a separate reference clock source for its internal timer. Clocks are independent to each other, with clean clock domain crossing boundaries, and the only requirement is that the AMBA interface clocks have a frequency larger or equal to the maximum SPMI clock frequency. The core is designed with industry best practices, and its reliability has been proven through rigorous verification.
技术规格
- 类别:
- 软件和 IP 核: FPGA 知识产权内核: 接口协议: 串行
- 最终客户类型:
-
中小企业
企业
其它
资源
采用的英特尔技术
英特尔® Agilex™ 7 FPGA 和 SoC FPGA
英特尔® Stratix® 10 FPGA 和 SoC FPGA
英特尔® Arria® 10 FPGA 和 SoC FPGA
Cyclone® V FPGA 和 SoC FPGA
Stratix® V FPGA
Stratix® IV FPGA
英特尔® Cyclone® 10 FPGA
Arria® V FPGA 和 SoC FPGA
Cyclone® IV FPGA
