AES-CCM: Authenticated Encrypt/Decrypt Engine
关于此报价

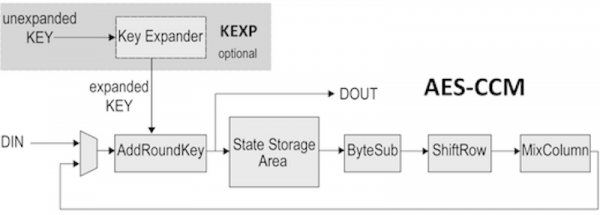

The AES-CCM encryption IP core implements hardware Rijndael encoding and decoding in compliance with the NIST Advanced Encryption Standard. It processes 128-bit blocks, and is programmable for 128-, 192-, and 256-bit key lengths. Two architectural versions are available to suit system requirements. The Standard version (AES-CCM-S) is more compact, using a 32-bit datapath and requiring 44/52/60 clock cycles for each data block (128/192/256-bit cipher key, respectively). The Fast version (AES-CCM-F) achieves higher throughput, using a 128-bit datapath and requiring 11/13/15 clock cycles for each data block. CCM stands for Counter with CBC-MAC mode. CCM is a generic authenticate-and-encrypt block cipher mode. CBC-MAC is utilized to generate an authentication string while CTR mode is used to encrypt. The AES-CCM cores are robustly verified and proven in numerous shipping products.
技术规格
- 类别:
- 软件和 IP 核: FPGA 知识产权内核: DSP: 转变
- 最终客户类型:
-
中小企业
企业
其它
资源
采用的英特尔技术
Stratix® V FPGA
英特尔® Agilex™ 7 FPGA 和 SoC FPGA
Arria® V FPGA 和 SoC FPGA
Stratix® IV FPGA
英特尔® MAX® 10 FPGA
英特尔® Stratix® 10 FPGA 和 SoC FPGA
